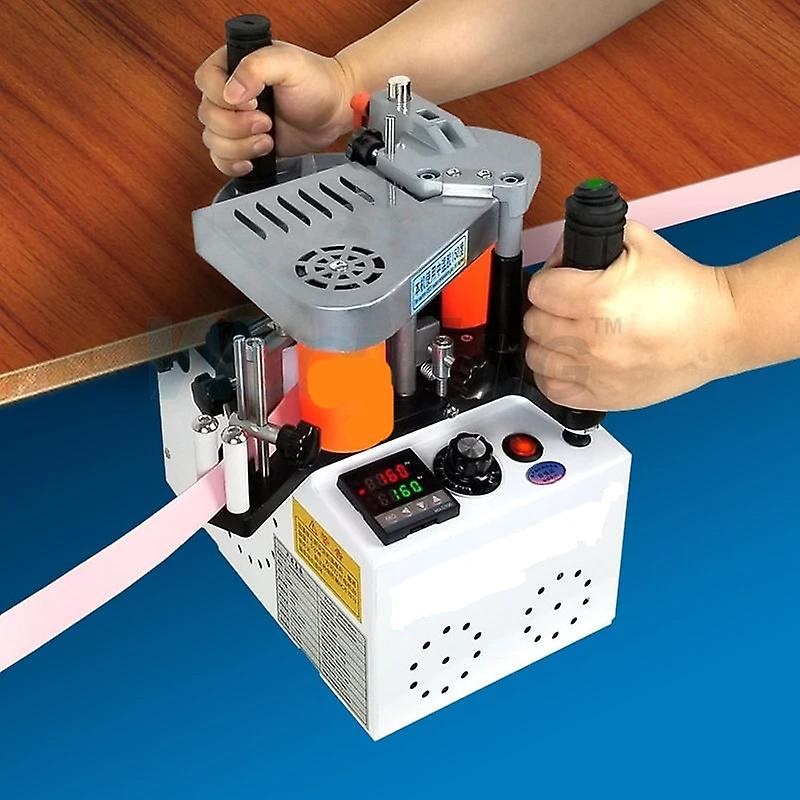

Portable Edging Machine, Edge Banding,
Portable Wood Edge banding machine
Edge trimming machine is used to seal the edges, such as wood
planks, veneers, windows, trimming equipment. Cover the edges with glue. Which
can be glued to both sides, then pressed with the machine to shave the corner to
look smooth. It looks beautiful with polished function. To look smooth The
machine works efficiently. Long service life, durable, suitable for furniture
making operators With medium sizes And used in general furniture factories
Rated power: 850W
Air tube size: 8*5mm
Working pressure: 6~8Pa
Heating time: 5~8min
Glue capacity: 800ML
Edge height: 7~60mm
Edge sealing speed: 0~6m/min
Speed regulation mode: step less electronic
Edge plate shape: curve type, linear type
Gluing method: double-sided coating
Belt cutting method: automatic belt cutting
Net weight: 30KG
Package weight: 35kg
Packing size: 53*53*53CM
Continuous working time: less than 12 hours
Double Gluing Adjustable Speed.|
Glue pot volume
Thickness of banding tape
Width of banding tape
- The motor has an
automatic protection system. When the temperature of the glue is too
low, the motor will automatically break the belt, effectively
extending the life of the motor..
double-sided glue, auto cut banding material, adjustable speed,
meeting different work needs. Recommend for medium and
low-temperature hot-melt adhesive.
- Kindly note
this type edge bander doesn't have trimming function, it also not
suitable for pre-glued banding materials. The edge bander needs to
be connected with the air pump to auto cut banding material..
- The edge bander equipped with
micro switch and self-locking foot switch, for cutting linear or
curved edge banding material, which will effectively improve work
- The edge bander equipped with a
professional device for material fixation, such as when sealing
large plate materials, the fixation device can press the plate and
fix it to a good position prevent the suspended part of the plate
from sagging, affecting the quality and speed of the edge banding
USA (Sizes & Specifications are based on the USA Market).
☞ This product is especially suitable
for the decoration
industry, it can be used for cabinets, wardrobes, wooden doors.
It’s a very practical desktop edge
banding machine with
double-sided coating and firmer edge sealing.
▞Intelligent temperature control, high
operation and low operating noise.
▞The machine features a large-scale
cylinder which is durable and
has a long service life.
▞High-quality cutter, quenching
treatment, high hardness, long
service life and strong cutting force.
▞Belt cutting micro switch: the
specialized linear sealing switch,
very sensitive, easy to operate.
▞800ml large capacity plastic pot, no
need to add glue
▞High-quality copper core motor,
powerful and durable.
▞Recommended to medium and
low-temperature hot melt adhesive.
