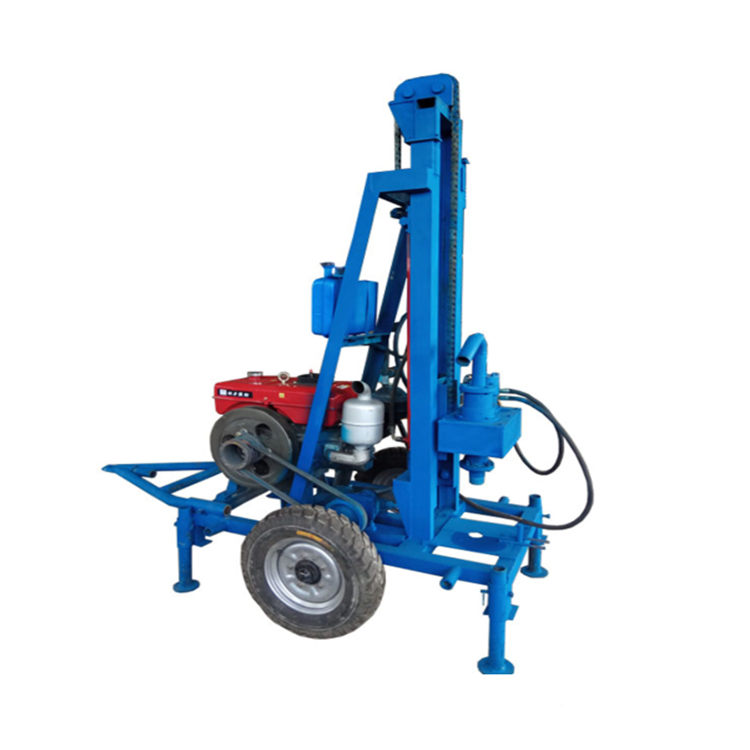

22HP Diesel Borehole Drilling Machine for Water Wells in Mozambique & Africa

This diesel hydraulic drilling machine is suitable for soil layers, quicksand layers, and a small amount of soft rock and soil. It is mainly used for drilling: civil water wells, ground-source heat pump wells, engineering de-watering wells, drought-relief wells and small industrial water wells.

The compact size and wheel-mounted design make it ideal for farms, small contractors and rural projects in Mozambique, South Africa and neighbouring countries where access is difficult and transport costs must be kept low.

• Type: PZG-DJ180 water well drilling machine
• Engine power: 22HP diesel (electric start)
• Water pump power: 3.5HP
• Recommended drilling depth: 0–150 m (we recommend max 95 m in normal conditions)
• Maximum drilling diameter: 300 mm
• Drill pipe diameter: 51 mm
• Drill pipe length: 1.5 m per section (not included in base price; extra cost)
• Weight: ± 560 kg
• Dimensions: 1.8 m × 1.3 m × 2.1 m
• Drill bit: alloy bit (standard) – PDC / diamond bits available at extra cost
• Circulation principle: positive circulation with mud / water
• Tower height: 2.5 m
• Suitable soil type: soil, sand, quicksand and soft formations
• Applications: engineering construction, farm and home use, rural water projects

• High-pressure water pump – 1 unit
• High-pressure water pipe – 5 m
• Basic tool kit & seat
• Oil seals and standard spares
• English manual
• Note: This is a compact low-cost rig – not the same as a 5 million rand truck-mounted drilling machine with compressor.
