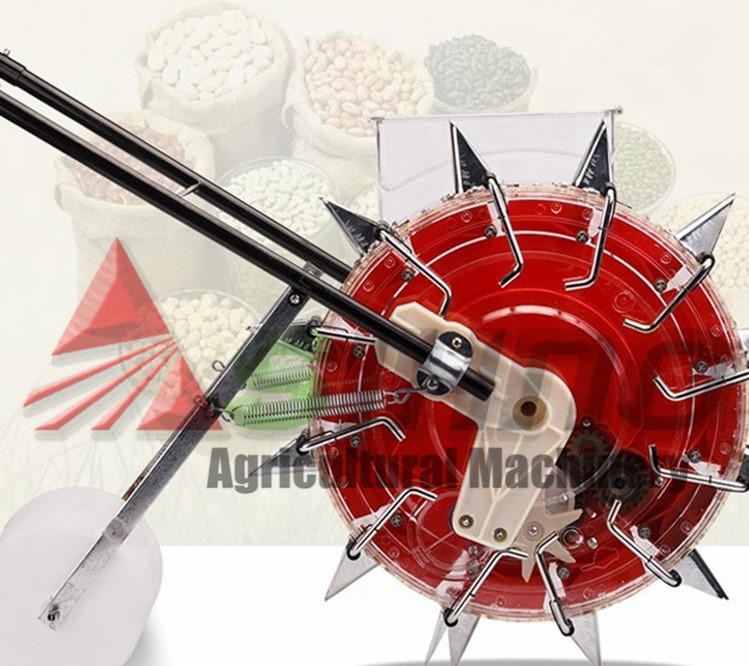

Rotary Hand Corn & Maize Seed Planter – South Africa

One side of the hopper can be used for fertiliser.

Spacing between the 2 wheels (SP5): 5–40 cm

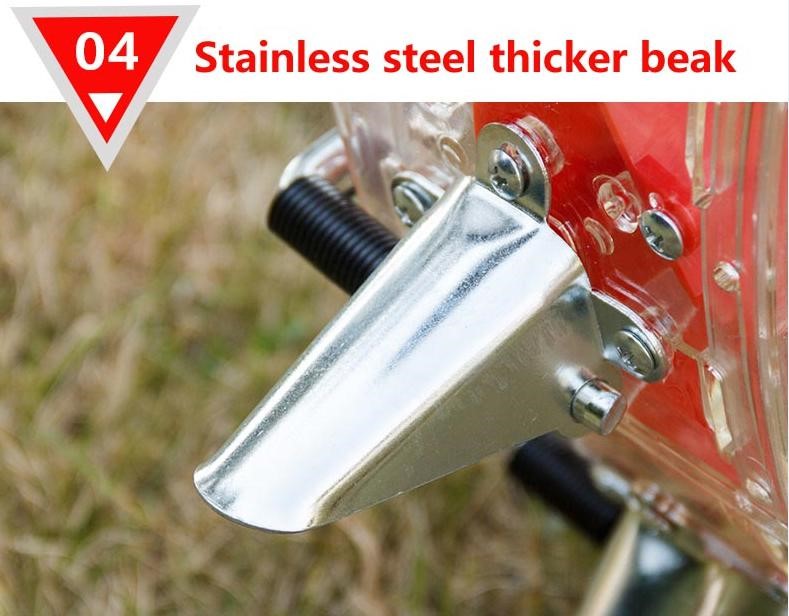

Duck bills (planting jaws): 23 cm apart

Hand-held rotary seed planter – features

1. Suitable for flat land, mountains, hills and planting through mulch film.
2. Quality construction makes the wheel roll lighter and last longer.
3. Transparent body lets you see how much seed and fertiliser is left.

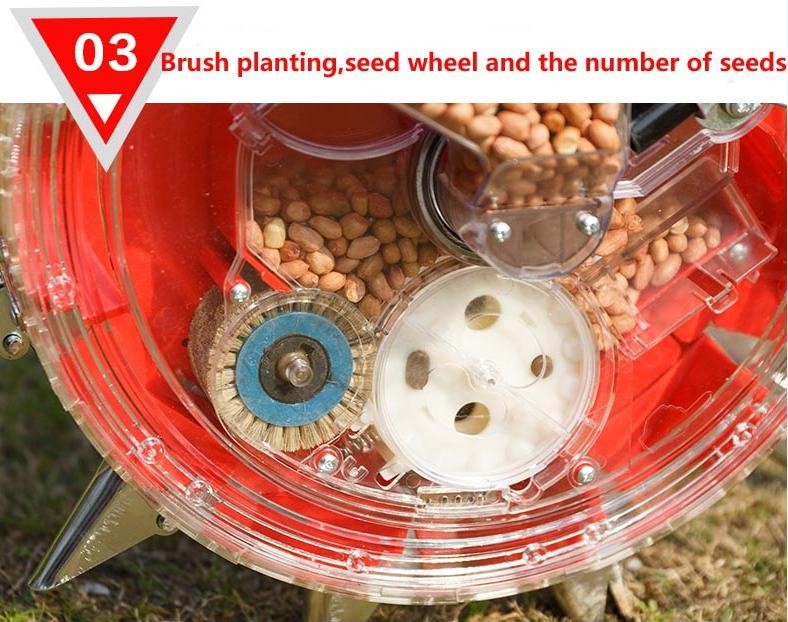

4. Number of seeds, spacing and depth can be adjusted as needed.
5. Handle height is adjustable, and the planting depth and angle can be changed for more even emergence.
6. Simple and easy to use, with reliable quality. Net weight 11.5 kg.

How to use

1. Fit the handle, the press wheels and the body together with the seed and fertiliser section.
2. Sieve the seed and fertiliser, then fill the hoppers.
3. Hold the planter parallel to the row and upright to the ground so it opens properly.
4. Hold the handle with both hands and walk forward at an even pace.

Technical specifications

Most parts of this planter are plastic – please handle it gently.

Model	YZDB
Row spacing	Adjustable
Seeding depth	5–6 cm
Net weight	11.5 kg
Seeding accuracy	98%
Seeding speed	Adjustable – 30–40 m/h suggested
Packaging	Carton, 54 × 24 × 58 cm
Terrain	Flat land, mountainous areas, hills, mulch film
Crops	Maize / corn, peanuts and similar seeds
